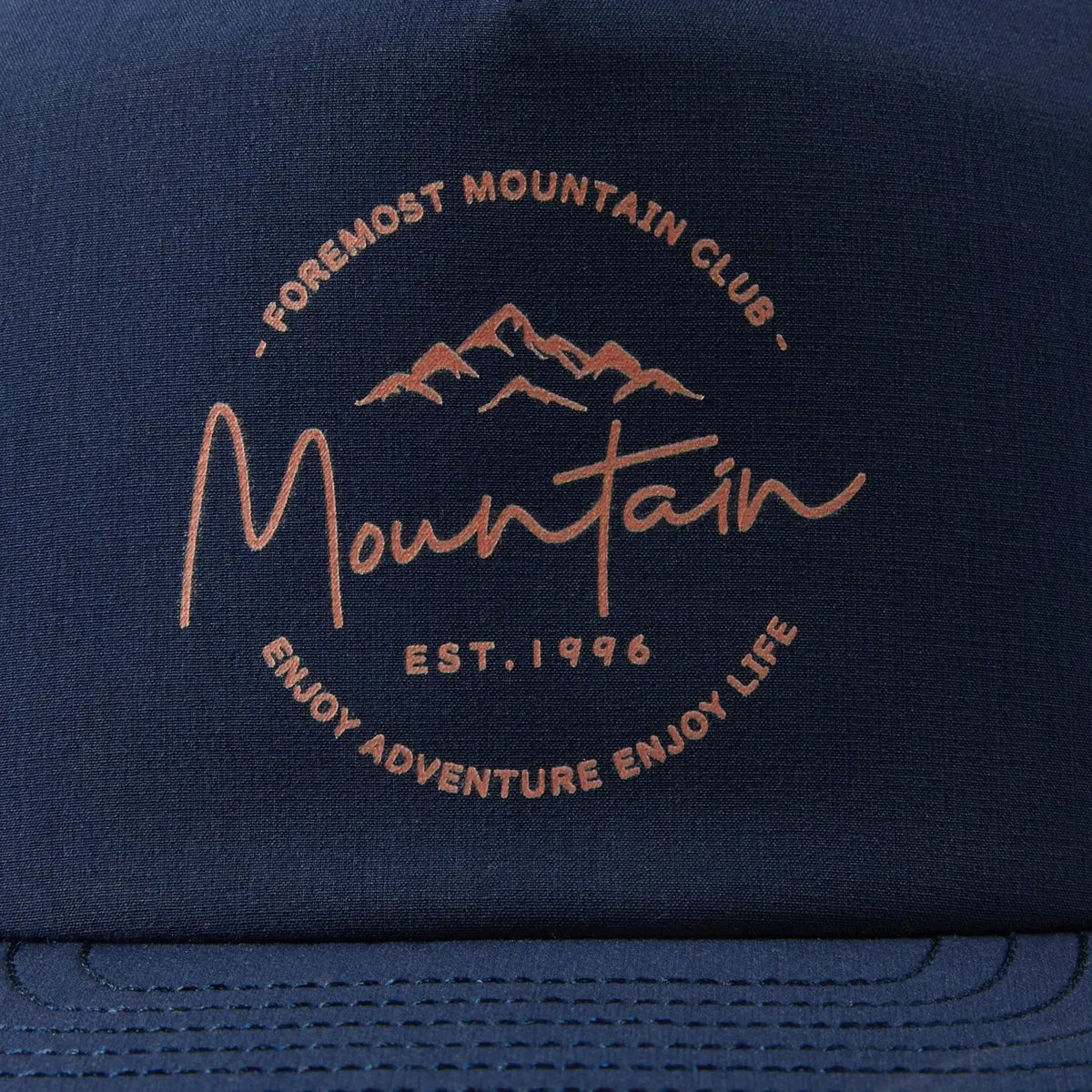

When a brand wants to manufacture custom caps with its own logo, choosing the cap model is only part of the process.

The technique used to apply the design also directly influences:

• the final appearance of the logo;
• the intensity of the colors;
• the texture;
• resistance to wear;
• production cost;
• and the most convenient minimum order quantity.

A design that looks perfect on a computer can behave very differently on a cotton, polyester, nylon, or water-repellent fabric cap.

Therefore, before starting a wholesale production, it is important to choose the customization method according to the cap material, the design, the order quantity, and the visual result the brand is looking for.

In this guide, we explain the main printing techniques for custom caps and when to use each one.

Which printing method is best for a custom cap?

There isn't a single technique suitable for all projects.

As a quick reference:

The final choice should be made after reviewing the cap model and the actual fabric that will be used in production.

1. DTF printing for caps

DTF (Direct to Film) printing allows the design to be printed first on a special film and then transferred to the cap using heat and pressure.

It is currently one of the most versatile options for producing custom caps with multi-colored designs.

Advantages of DTF

• Allows the use of numerous colors.
• Reproduces gradients and small details.
• Works well for complex designs.
• Does not require preparing a different screen for each color.
• Is convenient for small and medium orders.
• Allows for the production of very striking logos.

For example, a brand with a logo featuring five colors, shadows, and small details may find DTF a more practical alternative to traditional screen printing.

What should we review?

A DTF transfer creates a small layer on the fabric surface.

Therefore, in very large designs, the printed area may feel thicker than the rest of the cap.

Tests should also be performed when working with:

• dark polyester;
• nylon;
• waterproof fabrics;
• elastic materials;
• or fabrics with surface treatments.

The adhesive used must be compatible with the cap fabric.

2. Screen printing for caps

Screen printing continues to be an excellent option for simple logos and larger volume productions.

In this process, ink is applied directly to the fabric using a screen prepared for each color.

It works especially well for:

• large logos;
• letters;
• solid designs;
• one, two or a few colors;
• repetitive orders of large quantities.

Advantages of screen printing

When the design is suitable, it offers:

• solid colors;
• good definition;
• excellent consistency between pieces;
• competitive costs on large orders.

However, each additional color may require additional preparation.

For this reason, a one or two-color design is usually much more efficient for screen printing than an illustration with ten colors and gradients.

3. Sublimation

Sublimation works differently from other transfer techniques.

Instead of leaving a film on the surface, the color is integrated into compatible polyester fibers using heat.

This allows for highly detailed designs:

• very detailed;
• soft to the touch;
• with virtually no relief;
• and with a wide variety of colors.

When do we recommend sublimation?

It is particularly interesting for:

• polyester panels;
• sports caps;
• complete designs;
• repetitive patterns;
• large graphics;
• all-over designs.

For intense colors, it usually works best on white or light-colored polyester.

When practically the entire surface of a cap needs to be printed, it can also be convenient to print the panels before assembling them.

This offers greater freedom to create designs that cover a significant portion of the crown.

4. Heat transfer vinyl

Textile vinyl or HTV (Heat Transfer Vinyl) is cut to the shape of the design and then fixed onto the fabric using heat.

It can be a good alternative for:

• names;
• numbers;
• initials;
• texts;
• symbols;
• simple designs.

In addition, there are different finishes:

• matte;
• glossy;
• metallic;
• reflective;
• textured.

However, it is usually not our first choice when the design contains extremely fine lines, numerous colors, or too many small elements.

5. Silicone transfer

For brands looking for something different, silicone transfer can create a logo with a raised, modern appearance.

The result can be particularly attractive in:

• streetwear;
• sportswear;
• outdoor brands;
• premium collections;
• technical caps.

Depending on the design, it can provide a clean, flexible finish with a three-dimensional feel.

It's a good alternative when a brand wants its logo not only to be seen, but also to be felt when touched.

6. Reflective transfer

Reflective applications are widely used in products related to:

• running;
• cycling;
• outdoor activities;
• uniforms;
• sportswear;
• safety products.

During the day they may appear grey or silver, but when they receive a direct light source they produce a much more visible reflection.

For this type of project, the appearance of the logo should not be the only factor evaluated.

It is also important to review:

• adhesion;
• flexibility;
• resistance;
• behavior after use;
• intensity of the reflective effect.

The cap material completely changes the result

Choosing a technique solely by looking at the design is a common mistake.

The second factor we should always analyze is the composition of the cap.

Cotton

Cotton is one of the most versatile materials for customization.

It can work correctly with:

• screen printing;
• DTF;
• different types of transfer.

However, the finish also matters.

For example, washed cotton can have a different texture and behavior than traditional cotton twill.

Polyester

Polyester is very common in sports caps and trucker caps.

For full-color designs, it also allows for sublimation when the composition and color are appropriate.

But high temperatures can affect certain fabrics or colors.

That's why we always recommend testing the exact combination of:

fabric + color + transfer + application temperature.

Nylon

Nylon is lightweight and widely used in sports, technical, and outdoor caps.

However, some types of nylon are sensitive to high temperatures.

In addition, certain fabrics include water-repellent treatments that can make it difficult for a transfer to adhere.

Therefore, it is not enough to know that a cap is "100% nylon."

We must also know the specific finish of the fabric.

Stretch fabrics

On a stretch cap, the decoration must also withstand some movement.

An excessively rigid graphic on a very flexible fabric can generate:

• cracks;
• edge lifting;
• deformations.

In these cases, a sufficiently flexible system must be sought to accompany the movement of the cap.

A cap is not a flat t-shirt

This is one of the most important aspects of headwear printing.

A t-shirt can be easily placed on a flat surface.

A cap cannot.

The crown has:

• curves;
• seams;
• panels;
• internal structures;
• different levels of tension.

All of this modifies the pressure distribution during heat transfer.

For example, placing a design directly over the central front seam can make it difficult for the entire surface to receive exactly the same pressure.

This can cause small differences in the edges or in adhesion.

Therefore, when designing a custom cap, we should not think only about the graphic file.

We must also think about how that design interacts with the physical construction of the cap.

Print before or after cap manufacturing?

There are two main possibilities.

Panel customization before assembly

The design is applied while the fabric piece is still flat.

This can offer:

• larger print area;
• more uniform pressure;
• greater design freedom.

It is especially useful for some large or sublimated designs.

Customization on the finished cap

The design is applied when the cap is already fully assembled.

This allows working directly with the final shape of the product, although the available area may be more limited due to curves and seams.

The correct technique depends on the design and the cap model.

How to prepare your logo file

To achieve a professional result, we recommend submitting vector files whenever possible.

Common formats:

• AI;
• EPS;
• Vector PDF;
• SVG.

If only a JPG or PNG image exists, it must have sufficient resolution for the required final size.

We also recommend specifying:

Logo size

Do not just indicate:

“large logo on front”.

It is better to define a measurement, for example:

8 cm wide × 4 cm high.

Position

Indicate whether the design will be:

• centered on the front;
• left panel;
• right panel;
• side;
• back.

Colors

If the corporate color is important, provide a precise reference.

Depending on the project, you can use:

• Pantone;
• physical sample;
• previously approved color reference.

Why do we recommend making a sample before placing a wholesale order?

A digital representation or mockup helps visualize an idea.

However, it does not replace a physical sample.

A sample allows you to review:

• actual logo size;
• position;
• colors;
• texture;
• adhesion;
• cap shape;
• combination of decoration and fabric.

For custom bulk orders, this stage significantly reduces the risk of discovering a problem when hundreds or thousands of units have already been produced.

Quality control in printing and transfer

Before approving full production, we recommend reviewing several points.

1. Appearance

Check:

• color;
• definition;
• edges;
• position;
• surface;
• deformations.

2. Adhesion

The edges of the transfer must remain properly fixed.

3. Flexibility

When the fabric has elasticity, the decoration must withstand the normal movement of the product.

4. Resistance

Depending on the project and the expected use, care, friction, or washing tests can be performed.

5. Consistency

The position and appearance must remain consistent throughout the production.

Common problems in cap printing

Design edges lift

Possible causes:

• insufficient pressure;
• incompatible adhesive;
• treated surface;
• poor pressure distribution.

Solution

Review the material, transfer system, and application conditions.

Design cracks

This can happen when the transfer is too rigid for a flexible fabric.

Solution

Use a more flexible construction and perform tests on the actual material.

Fabric becomes shiny after heat

Some fibers may react to excessive temperature or pressure.

Solution

Adjust the process and use appropriate protection during application.

Logo appears deformed

The curves of the crown can visually alter a design.

Solution

Adjust the size, position, or even the graphic file considering the final shape of the cap.

DTF, embroidery, or screen printing?

This is one of the questions we receive most frequently.

The answer depends mainly on the result the brand is looking for.

Choose DTF if you are looking for:

• many colors;
• gradients;
• details;
• relatively small quantities;
• complex graphics.

Choose screen printing if you are looking for:

• simple designs;
• solid colors;
• large orders;
• repetitive production.

Choose embroidery if you are looking for:

• premium appearance;
• texture;
• classic logos;
• greater three-dimensional feel.

The same collection can also combine different techniques.

For example:

front embroidery + side transfer

or

front patch + back print.

This allows for the development of a much more personalized product.

What information do you need to send to request a quote?

To prepare a quote for custom caps more quickly, we recommend sending:

1. Desired cap model.
2. Approximate quantity.
3. Preferred material.
4. Cap color.
5. Logo file.
6. Approximate design size.
7. Logo position.
8. Preferred technique, if you already have one.
9. Destination country or city.

If you don't yet know which technique to use, it's not necessary to decide before contacting us.

We can review your design and the characteristics of the cap to recommend a suitable option for production.

Manufacturing custom caps with WESTVADO

A good custom cap doesn't just depend on placing a logo on an existing product.

To achieve a consistent result, we must jointly consider:

cap shape + material + design + personalization technique + production process.

At WESTVADO, we work on B2B custom cap projects for brands, distributors, companies, and wholesale buyers.

We can help you develop different elements of your cap, including:

• crown style;
• visor;
• fabric;
• colors;
• closures;
• labels;
• embroidery;
• printing;
• patches;
• packaging.

Do you have a design for your next collection?

Send us your logo, the cap model you are looking for, and the approximate quantity.

Our team can review your project requirements and help you select a suitable personalization technique.

Request a quote for your custom caps.

Frequently Asked Questions

What is the best technique for printing a logo on a cap?

It depends on the design and the material. For simple logos, screen printing can be used, while DTF is especially useful for multicolored and detailed designs. Sublimation is a good alternative for certain polyester fabrics.

Can DTF be used on any cap?

Not necessarily. The result depends on the fiber, fabric, and surface treatments. We always recommend testing the transfer on the same material that will be used in production.

Can you print over the center seam of a cap?

It is possible in certain cases, but the seam creates an irregular surface and can make uniform pressure difficult. When the design allows, keeping important details away from the seam can improve consistency.

What is better for a cap: print or embroidery?

No technique is better in all cases. Embroidery provides texture and a classic appearance, while printing can more easily reproduce gradients, numerous colors, and graphic details.

Can I combine embroidery and printing on the same cap?

Yes. Combining different techniques is an excellent way to develop more exclusive designs for a brand.

Do I need a sample before mass production?

For a customized product, we recommend approving a sample before full production. This allows verification of the logo size, position, material, color, and final finish.
